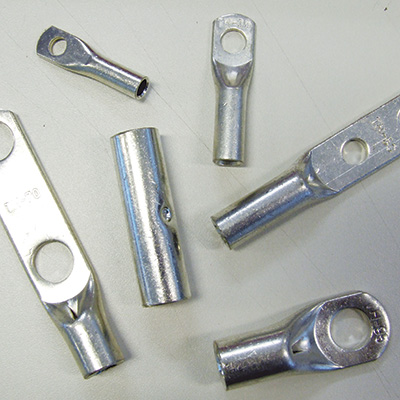

1 Furo – 1 Compressão
| Cabo (mm²) | Código | Ø Furo (mm) | A (mm) | B (mm) | L (mm) | W (mm) |
|---|---|---|---|---|---|---|
| 6 | TB 61 | 6,5 | 12,0 | 9,0 | 25,0 | 9,0 |
| 10 | TB 101 | 6,5 | 13,0 | 12,0 | 30,0 | 10,0 |
| 16 | TB 161 | 6,5 | 16,0 | 12,0 | 35,0 | 11,5 |
| 25 | TB 251 | 8,5 | 17,0 | 12,5 | 37,0 | 12,8 |
| 35 | TB 351 | 8,5 | 19,0 | 12,5 | 40,0 | 14,7 |
| 50 | TB 501 | 8,5 | 20,0 | 19,0 | 47,0 | 17,7 |
| 70 | TB701 | 10,5 | 24,0 | 19,0 | 53,0 | 20,6 |
| 95 | TB 951 | 13,5 | 25,0 | 20,0 | 57,0 | 23,5 |
| 120 | TB1201 | 13,5 | 31,0 | 22,0 | 67,0 | 28,0 |
| 150 | TB1501 | 13,5 | 30,0 | 25,0 | 72,0 | 30,0 |
| 185 | TB1851 | 13,5 | 32,0 | 30,0 | 74,0 | 32,6 |
| 240 | TB2401 | 17,5 | 38,0 | 34,0 | 86,0 | 37,5 |
| 300 | TB3001 | 17,5 | 40,0 | 36,0 | 97,0 | 41,0 |
1 Furo – 2 Compressões
| Cabo (mm²) | Código | Ø Furo (mm) | A (mm) | B (mm) | L (mm) | W (mm) |
|---|---|---|---|---|---|---|
| 10 | TB101-12 | 6,5 | 12,0 | 18,0 | 35,0 | 10,0 |
| 16 | TB161-12 | 6,5 | 13,5 | 20,0 | 40,0 | 11,5 |
| 25 | TB251-12 | 8,5 | 16,5 | 23,0 | 44,5 | 12,8 |
| 35 | TB351-12 | 8,5 | 18,5 | 24,0 | 50,5 | 14,7 |
| 50 | TB501-12 | 8,5 | 20,5 | 30,0 | 60,0 | 17,7 |
| 70 | TB701-12 | 13,8 | 23,0 | 35,5 | 68,5 | 20,6 |
| 95 | TB951-12 | 13,8 | 25,0 | 36,0 | 72,0 | 23,5 |
| 120 | TB1201-12 | 13,8 | 33,0 | 38,0 | 82,5 | 28,0 |
| 150 | TB1501-12 | 13,8 | 34,0 | 40,0 | 86,0 | 30,0 |
| 185 | TB1851-12 | 13,8 | 34,0 | 48,0 | 95,0 | 32,6 |
| 240 | TB2401-12 | 13,8 | 43,0 | 56,0 | 115,0 | 37,5 |
| 300 | TB3001-12 | 13,8 | 47,0 | 60,0 | 125,0 | 41,0 |
2 Furos – 1 Compressão
| Cabo (mm²) | Código | Ø Furo (mm) | A (mm) | B (mm) | g (mm) | L (mm) | W (mm) |
|---|---|---|---|---|---|---|---|
| 10 | TB101-21 | 6,5 | 26,0 | 9,0 | 14,0 | 40,0 | 10,0 |
| 16 | TB161-21 | 6,5 | 29,5 | 11,0 | 16,0 | 45,0 | 11,5 |
| 25 | TB251-21 | 8,5 | 32,5 | 11,5 | 16,0 | 49,0 | 12,8 |
| 35 | TB351-21 | 8,5 | 37,5 | 12,5 | 19,0 | 58,0 | 14,7 |
| 50 | TB501-21 | 8,5 | 43,0 | 16,0 | 22,0 | 68,0 | 17,7 |
| 70 | TB701-21 | 13,8 | 67,5 | 17,0 | 44,4 | 95,0 | 20,6 |
| 95 | TB951-21 | 13,8 | 69,5 | 20,0 | 44,4 | 101,0 | 23,5 |
| 120 | TB1201-21 | 13,8 | 77,5 | 25,5 | 44,4 | 115,0 | 28,0 |
| 150 | TB1501-21 | 13,8 | 78,5 | 26,0 | 44,4 | 117,0 | 30,0 |
| 185 | TB1851-21 | 13,8 | 78,5 | 27,0 | 44,4 | 119,0 | 32,6 |
| 240 | TB2401-21 | 13,8 | 87,5 | 30,0 | 44,4 | 134,0 | 37,5 |
| 300 | TB3001-21 | 13,8 | 91,5 | 33,0 | 44,4 | 143,0 | 41,0 |
2 Furos – 2 Compressões
| Cabo (mm²) | Código | Ø Furo (mm) | A (mm) | B (mm) | g (mm) | L (mm) | W (mm) |
|---|---|---|---|---|---|---|---|
| 10 | TB101-22 | 6,5 | 26,0 | 18,0 | 14,0 | 49,0 | 10,0 |
| 16 | TB161-22 | 6,5 | 29,5 | 22,0 | 16,0 | 56,0 | 11,5 |
| 25 | TB251-22 | 8,5 | 32,5 | 23,0 | 16,0 | 60,5 | 12,8 |
| 35 | TB351-22 | 8,5 | 37,5 | 24,0 | 19,0 | 69,5 | 14,7 |
| 50 | TB501-22 | 8,5 | 43,0 | 30,0 | 22,0 | 83,0 | 17,7 |
| 70 | TB701-22 | 13,8 | 67,5 | 35,5 | 44,4 | 113,0 | 20,6 |
| 95 | TB951-22 | 13,8 | 69,5 | 36,0 | 44,4 | 116,5 | 23,5 |
| 120 | TB1201-22 | 13,8 | 77,5 | 38,0 | 44,4 | 127,0 | 28,0 |
| 150 | TB1501-22 | 13,8 | 78,5 | 40,0 | 44,4 | 130,5 | 30,0 |
| 185 | TB1851-22 | 13,8 | 78,5 | 48,0 | 44,4 | 139,5 | 32,6 |
| 240 | TB2401-22 | 13,8 | 87,5 | 56,0 | 44,4 | 159,5 | 37,5 |
| 300 | TB3001-22 | 13,8 | 91,5 | 60,0 | 44,4 | 169,5 | 41,0 |
